Security Guard Shacks & Prefabricated Guard Houses

KABTech’s guard shack buildings are comfortable, attractive and will certainly last for years.

Unlike typical construction, many of our booths, shacks and out buildings can be shipped for immediate use.

KABTech designs your portable guard booth or backflow enclosures according to all of your locations coding requirements, and conference factors such as seismic, wind and snow loads.

The usages of our security buildings are endless. The only limitation is your creativity!

We can construct portable outside guard shacks from wood, steel, or aluminum. Our customized portable and stackable buildings provide an outstanding supervisory view, which makes them perfect for usage as:

  • Guard Shacks
  • Guard Houses
  • Outdoor Office Enclosures
  • Security Officer Booths
  • Parking Lot Ticket Booths
  • Outdoor Shipping & Receiving Offices
  • Portable Security Buildings.

Raised Guard Shacks

KABTech’s two story buildings in plant facilities use overhead space to take full advantage of reclaiming unusable square footage.

Our stackable, modular multi-purpose buildings can be easily reassembled utilizing cranes or forklifts. We can make your guard shack with materials that will eliminate the need for costly mezzanine decking or superstructures.

Features include structural sheathing, plaster interiors, and thermal windows and offer optimal sound control between floors.

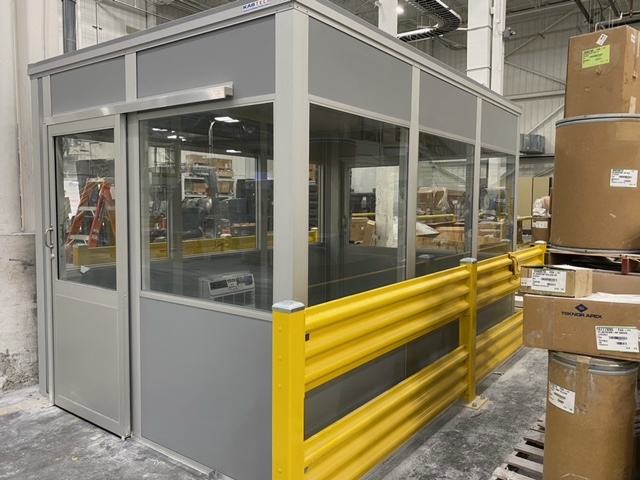

We can also show you how you can protect your KABTech security guard booths and outside guard buildings from damage with optional steel bollard posts and safety guards, safety barriers and forklift barriers. All prefabricated buildings adhere to the applicable rules of fire prevention and Building Safety Commission IC 22-15-4-2.

Here the specifics of our guard shacks and guard houses:

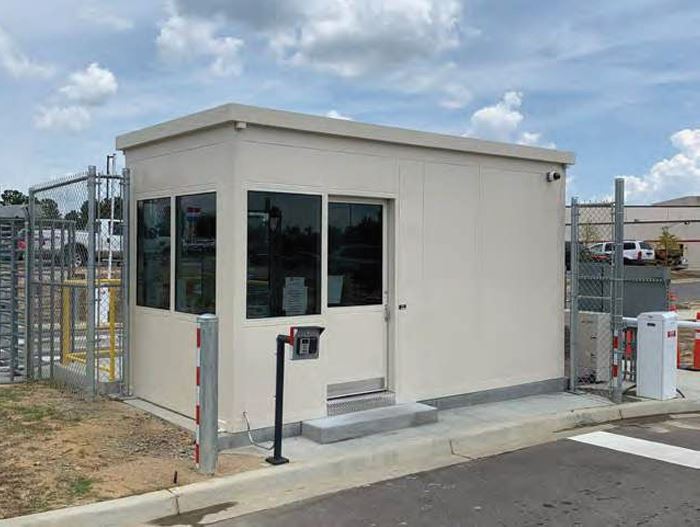

guard booth
guard shack enclosure

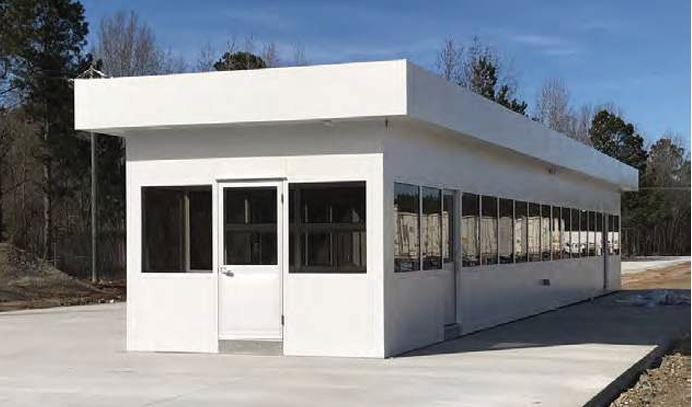

guard shack
guardhouse

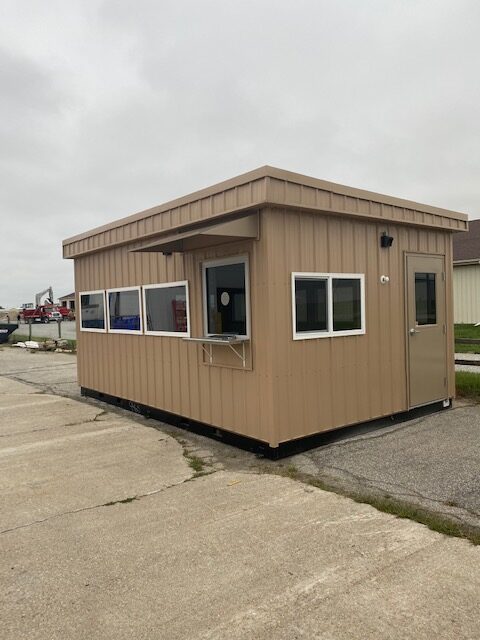

portable guard shack

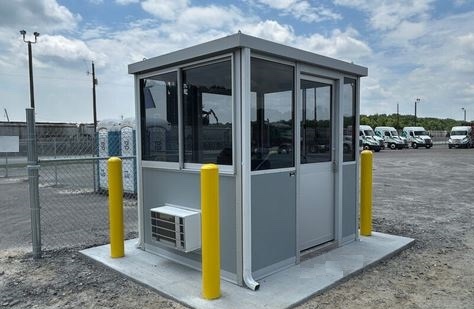

security booths

Guard Shack Specifications

KABTech is a supplier for many types of modular offices and security houses including guard shack and prefabricated guard houses.

Specifications
Capabilities Assembly, Delivery, Design and Engineer, Fabrication, Inspection, Installation
Applications Car Rental Offices, Cleanrooms, Computer Rooms, Conference Rooms, Control Rooms, Dock Offices, Field Offices, Foreman’s Offices, Industrial Complexes, In-Plant Offices, Lunch Rooms, Multi-Offices, Observation Rooms, Payroll Offices, Public Offices, Sales Offices, Team Rooms, Training Rooms, Delivery Receiving Offices and Parking Booths
Modular Building Construction Materials Aluminum, Steel, Wood
Maximum Modular Structure Size 40′ x 40′
Standard Sizes Length: 8′ to 40′
Width: 8′ to 14′
Ceiling Height 7′ to 10′
Modular Building Weight 1,200 lbs to 14,000 lbs
Standard Window Size 46″ x 27″
Standard Door Size 36″ x 80″
Testing Capabilities FSP Test, V50 Test
Exterior Colors Blue, Brown, Gray, Green, Red, Tan, White
Interior Wall Coverings Beige, Calcutta Gray, Calcutta Tan
Standard Interior Floor Coverings Ebony, Nutmeg, Sesame
Options 8′ Ceiling Height and Higher, Additional Doors and Windows, Air Conditioning, Air Conditioning with Heater, Air Purifiers, Base Board Heat, Built-in Desks, Carpeting, Closets, Computer Wiring, Conduit (EMT) Wiring, Custom Roof Decking, Double Story, Exhaust Fans, Exterior Lighting, First Aid Equipment, In-Swing Doors, Lockers, More, No Floors, Partitions, Phone Jacks, Roof Overhangs, Security Windows and Doors, Sliding Windows vs. Picture, Sloped Roof, Smoke and Security Alarms, Special Floor Coverings, Special Windows, Sprinkler Systems, Tinted Windows, Transformers, Venetian Blinds, Wainscot, Washroom Facilities
Special Exterior Options
  • Exterior with Hip Roof
  • Wood Exterior with Wood Mansard
  • Steel Exterior with Slopped Roof
  • Exterior with Slopped Overhang Roof
  • Brick and Wood Exterior with Shingled Roof
  • Brick and Steel Exterior with Steel Mansard
  • Fiberglass Exterior with Radius Windows
Lead Time 3 to 4 weeks from the time of order
Modular Stackable Building Advantages
  • Excellent sound control between floors.
  • Facilitate optimal utilization of production space.
  • Fast and easy to install as well as maintain than conventional buildings.
  • Modular sections are pre-assembled and pre-wired.
  • No superstructure or mezzanine required with the two story option.
  • Provide excellent supervisory view for several inspection and security applications.
Standards
  • Built to uniform building code specifications (Can make to specific code requirements upon request.)
  • All electrical components are UL listed & all wiring is per National Electric Code (latest edition).
  • Buildings comply with the applicable rules of the Indiana Fire Prevention and Building Safety Commission IC 22-15-4-2.
Industries Served Automotive, Distribution Centers, Energy, Government Buildings, Manufacturing, Medical/Dental, Military, Mining, Oil Drilling, Others, Prisons/Correction Facilities, Private/Public Schools, Recycling, Restaurants, Steel Mills, Universities and Parking Lot Security

Standard Specifications

Standard Features 1/8″ Industrial Floor Tile, Complete Floor, and Roof System, Diffused Lighting, Heavy Duty Vinyl Wall Covering, Interior Receptacles, More
Standard Options Acoustical Accordion Doors, Exhaust Fans, Heating and Air Conditioning, Hydraulic Door Closers, Sprinklers, Steel Doors, And More
Perimeter Frame Perimeter tubular 2″ x 6″ frame members (13 ga.) with structural steel “C” channel 2″ x 8″ set perpendicular to and inletted into side tubular bars. Channel is utilized as forkliftable slots for handling. All frame parts are coated with corrosion resistant (black) paint.
Metal Weather Shield Galvanized steel construction. The shield covers the entire floor assembly and is located between frame and underside of floor joists.
Floor Joists Joists are nominal 2 x 4 (1 1/2″ x 3 1/2″) spaced in a lateral configuration, 12″ O.C. Lumber is #2 SPF or better.
Floor Insulation Fiberglass batt-type insulation between floor joists is R-11 and entirely fills any and all voids.
Floor Decking 3/4″ thick A.P.A rated plywood is fastened securely to floor joists with glue and ring shank nails (spaced approximately 4″ O.C.). All seams are sanded smooth and filled as necessary.
Floor Covering Vinyl composition floor tile 1/8″ thick 12″ x 12″ squares are laid on the floor utilizing waterproof tile adhesive. Pattern full depth of tile.
Wall Studs Studs are nominal 2 x 4 (1 1/2″ x 3 1/2″) space 16″ O.C. Lumber is S.P.F. stud grade or better. Top plate is nominal 2 x 4 (1 1/2″ x 3 1/2″) fastened securely to studs. Bottom plate is nominal 2 x 4 (1 1/2″ x 3 1/2″) fastened securely to studs.
Wall Insulation Fiberglass batt-type insulation between studs is R-11 and entirely fills any and all voids. Total R-value is R-14 with sheathing.
Interior Wall Covering 1/2″ thick gypsum board with laminated vinyl covering is fastened to the inside of the studs with wide crown staples and gypsum adhesive; the material has a class ‘A’ flame spread rating. 4″ vinyl base cover.
Exterior Sheathing Under steel siding structural sheathing is secured to entire exterior, per manufacturer’s recommendations. Sheathing is 1/8” structural thermo-ply.
Roof Framing Rafters are nominal 2 x 4 (1 1/2″ x 3 1/2″) spaced in lateral configuration 16″ O.C. Lumber is #2 SPF or better.
Interior Ceiling Ceiling material is 1/2″ gypsum with a white stucco pre-finish fastened securely to roof rafters with wide crown staples and screws. The material has a class ‘A’ flame spread rating.
Roof Insulation Fiberglass batt-type insulation between roof rafters is R-11 and entirely fills any and all voids.
Exterior Roof Sheathing The top side of the rafters has 7/16″ sheathing fastened to roof rafters. Covered entirely with a four mil. Polyvinyl vapor barrier.
Roof Covering 30 ga. Galvanized steel construction. Roof metal covers entire roof assembly.
Exterior Siding Galvanized steel siding is 29 ga. Pre-finished (on both sides) commercial type with appropriate top and bottom trim fastener securely to studs. Seven standard colors are available. 40-year guarantee.
Windows Windows are a fixed glass (picture) type, double insulated glazing with vinyl extrusion around the perimeter. Windows are secured in place and sealed with a silicone-based sealant. Glazing is double 1/8″. Sliding windows are optional.
Exterior Doors Doors are a sandwich type construction with 0.019 aluminum on both faces and an interior core of foam and wood perimeter. A welded aluminum extrusion surrounds the assembly. This assembly is, in turn, pre-hung in an aluminum frame equipped with heavy-duty metal hinges. Door lite is fixed tempered glass single pane. Heavy-duty door closure included.
Full Depth Fork Pockets All sizes 2 1/2″ x 8″ structural ‘C’ channel (3 1/2″ x 7″ opening).
Interior Light Fixtures All light fixtures are 4′-0″ (four foot) T8 twin tube with an acrylic wrap-around type diffuser cover.
Interior Ceiling Height The dimension from the finished floor surface to the finished ceiling surface is 7′-0″ (seven foot). 8′ optional with 2 x 4 wall studs and R-11 insulation. Total R-value is R-14 with sheathing.
Electrical Service Panel Pre-wire service entrance panel is equipped with a 60-amp main breaker, a 15-amp breaker (for lights), an additional 20-amp breaker (for receptacles), and any additional breakers necessary. Entrance conduit is through the exterior wall for ease of hook-up. All electric components UL listed and wired to National Electrical Code. Standard service is 240/120V, single-phase, 60 cycles.

Durability and Weather Resistant Features

Rain and Moisture Protection Options All Speed Space buildings are designed for inside or outside use. Galvanized steel roof and under floor sheathing, double insulated glass windows, vapor barrier, moisture-proof sheathing assures excellent humidity control.
Wind, Cold, and Heat Insulation Options Steel siding, structural thermal sheathing, full 3 1/2″ insulation and thermal windows guarantee comfortable temperatures, even in the most severe weather.
Fire Resistant Options Steel siding, roof and under floor sheathing, as well as gypsum interior, give Speed Space buildings a class ‘A’ flame spread rating on all surfaces. Sprinkler systems and totally non-combustible units are available.
Noise Control Options Structural sheathing, gypsum interior, and thermal windows create a decibel drop in the 25 to 30-decibel range, standard with windows and doors. For extreme conditions, optional sound control is available (triple-glazed windows, soundboard, and carpeting).
Damage Protection Options Exterior steel siding with a baked finish on both sides (40-year guarantee), structural sheathing, 1/8″ industrial floor tile, heavy-duty vinyl interior walls, and a 4″ rubber base molding all help to control accidental or deliberate damage. Doors are heavy-duty with kick plate, light, and closure.

The Century Series Modular Building

Features Available in All of Our Same Great Color Selections, Crisp Clean Lines, Durable clad aluminum construction with high density polypropylene core, Excellent Thermal Stability, Light Weight and Water Resistant, Low Profile Trim Packages, No Exposed Fasteners, Sharp Details, Smooth exterior siding
