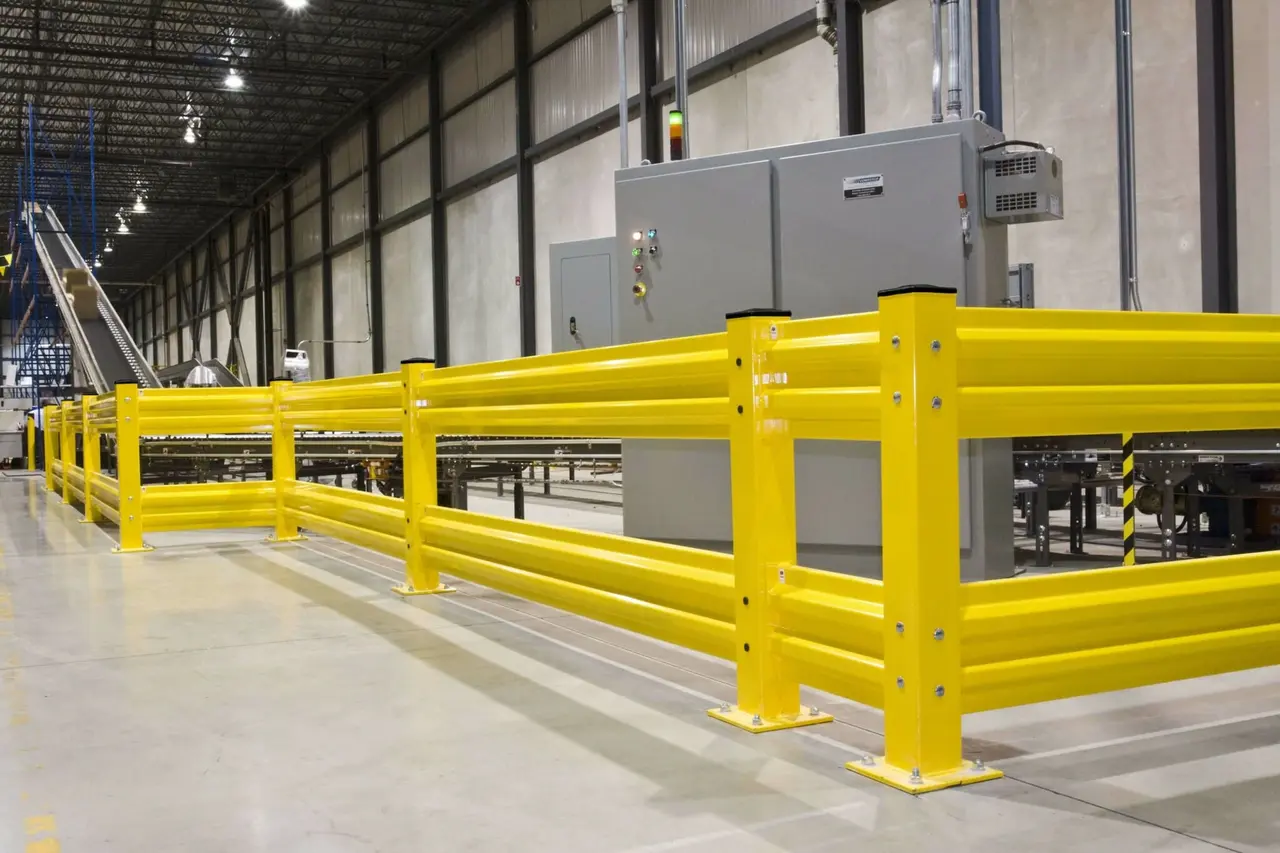

Forklift Guard Rail and Industrial Safety Barriers by KABTech
All safety barrier guard rails are constructed of high-strength ASTM A-36 structural steel, providing the added forklift barrier safety that cold-rolled steel products just can’t deliver.
Warehouse barriers are essential to protect your mezzanines and in-plant office space as well as product conveyors and production machinery from forklift damage or loss.
Safety Rails – Best Quality, Easy Installation, Fast Shipping
- Impact Rated, 10,000-lb load at five mph
- Available rail lengths range from 2’ through 10’, and special lengths are available
- All hardware included for easy installation with removable floor anchors
- Bright OSHA yellow powder-coated finish
- Meets OSHA safety rail requirements
- Columns are manufactured from high-strength 4” x 4” square steel tube
- 8” x 8” Baseplates are ½ thick steel and can be ordered offset if needed
- Rails are manufactured of 11 ga high-tensile steel formed into a corrugated design with two secondary ribs
- 5-1/2” removable screw anchors are provided for rail replacement without damage to the concrete floor
- Single, double, and triple rail applications available
- Special lift-out rail sections available for quick equipment access
- Simple column design can be used for line or corner post application

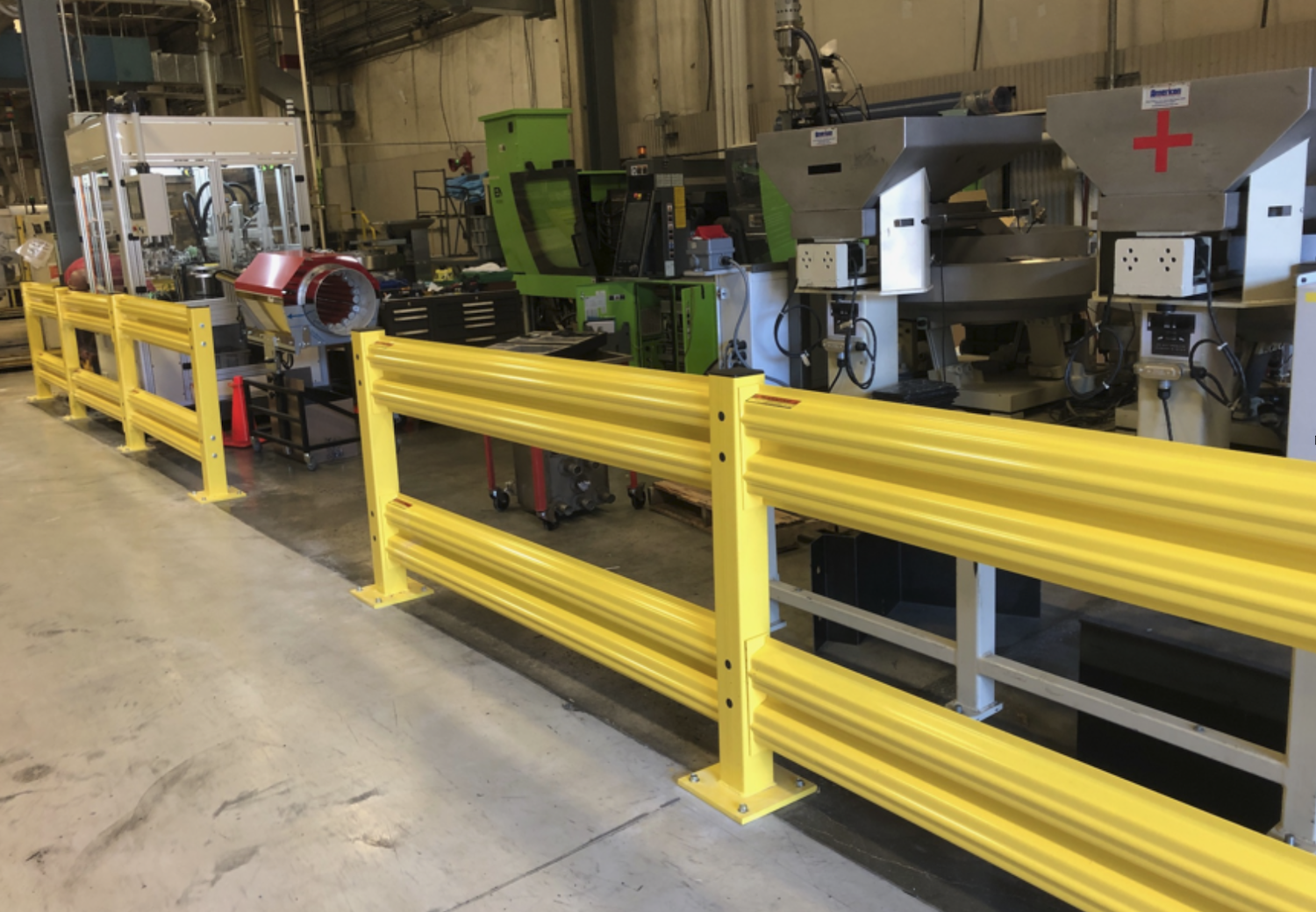

Standard Barrier Rail
Available for Quick Ship
Standard Barrier Rail lengths available are 2’, 3’, 4’, 5’, 6’, 7’, 8’, 9’, and 10’
(Length is measured from center of column to center of column)
Standard Column heights are 18” tall for a single rail, 42” tall for a double rail, and 42” tall for a triple rail

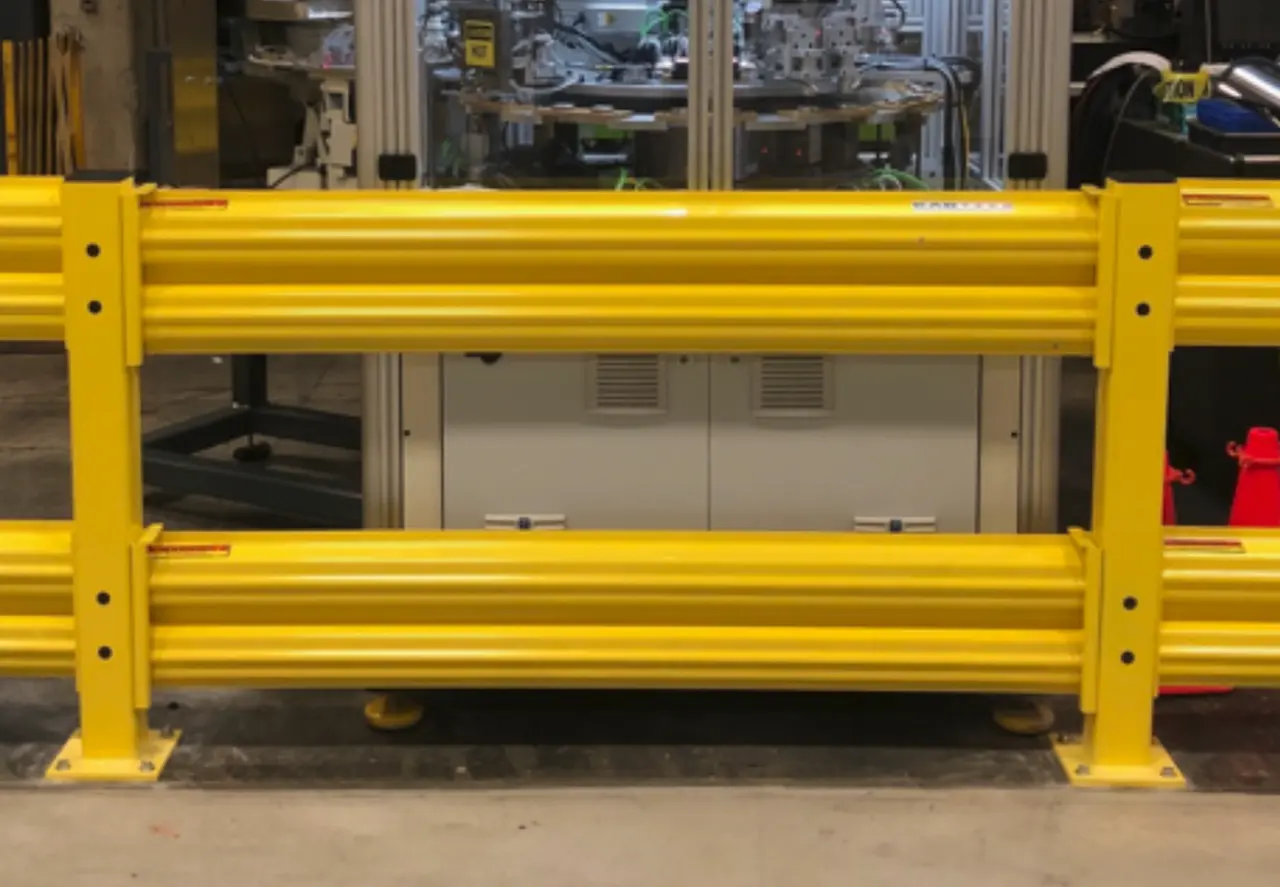

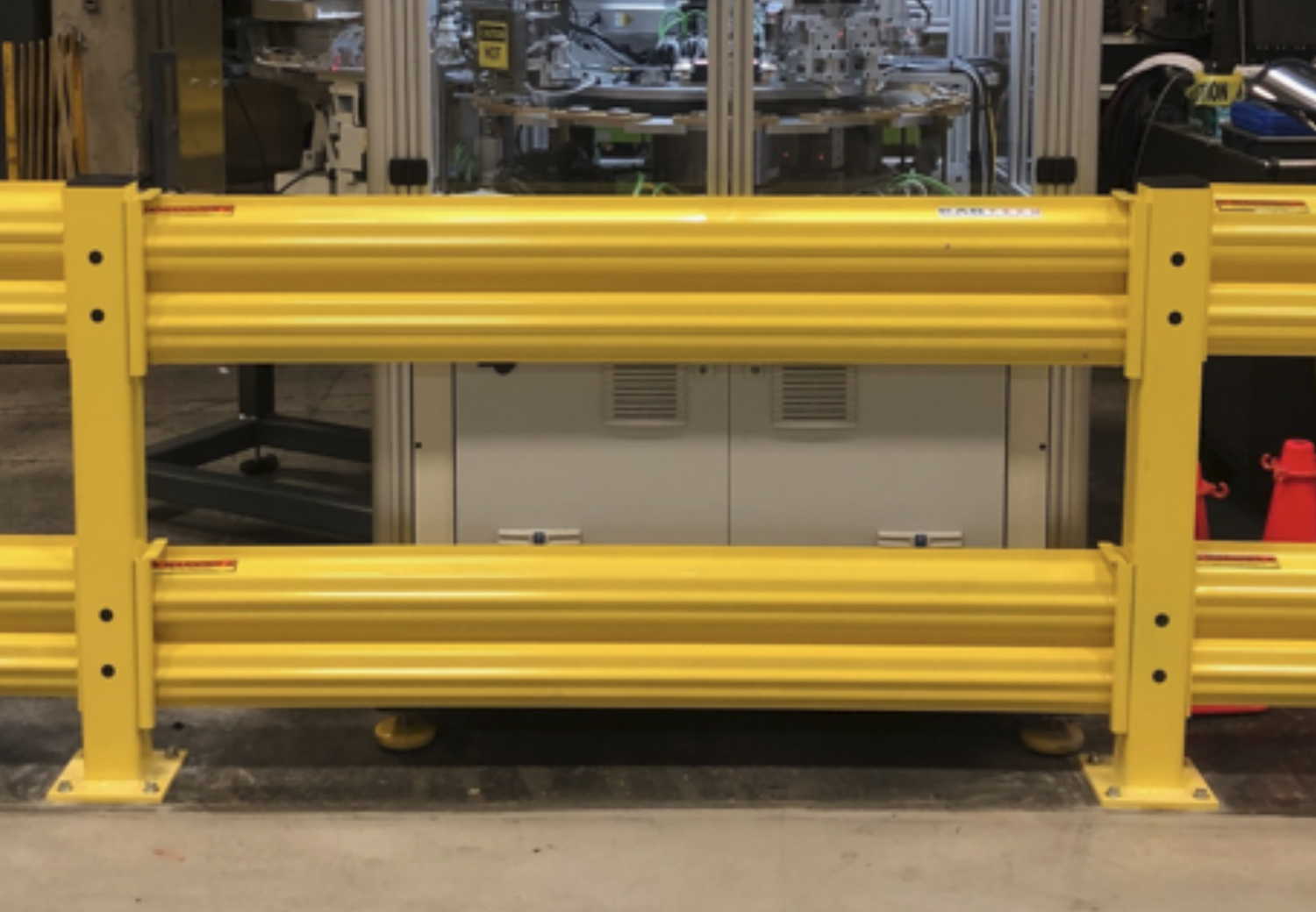

Lift-Out Barrier Rail Sections
Available for Quick Ship
Removable, Lift-Out Rail lengths available are 2’, 3’, 4’, 5’, 6’, 7’, 8’, 9’, and 10’
Standard Column heights are 18” tall for a single rail, 42” tall for a double rail, and 42” tall for a triple rail
(Special column posts are needed for the lift-out rails)
Safety Barrier Guard Rail Selection and Installation
Every safety barrier rail system that KABTech offers comes with easy to read instructions and all the mounting hardware you need to get the job done right.
KABTech’s universal posts and modular design make it easy to configure our industrial barrier rails to your workspace. Standardized guard rail components can be arranged in any direction and barrier rail lengths to fit your space requirements.
Have Your Forklift Barriers Installed By KABTech
KABTech can also provide factory-trained installers to help with the setup and installation process. KABTech has professional designers that are ready to assist you with questions and concerns about your forklift barrier project requirements.
They will facilitate the order process and provide essential product assistance for choosing economic and integral warehouse safety barrier systems that are custom selected for your industrial safety needs.
Additional Warehouse Perimeter and Equipment Protection

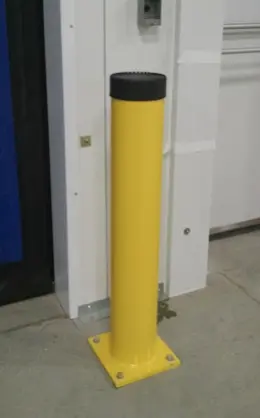

Bollards
BollardsBolt-in steel pipe bollards protect dock doorways, egress passages, and products from accidental vehicle or pallet collisions.
KABTech offers both Heavy Duty and Standard Duty Steel Bollards in 6” and 4” tube sizes, depending on your level of protection needed for the traffic in that area.
Quality Track Armor and Rack Guards
Protects against expensive door track repairs, column damage, and dock downtime
• Simple installation quickly mounts securely to the floor and wall
• Doesn’t interfere with track operations while protecting the door and track
• Choose from standard heights of 24”, 36”, 42”, and 48”
• Base mounts through three 1/2” mounting holes for 3/8” anchors (included)
• Guards are left-hand or right-hand specific

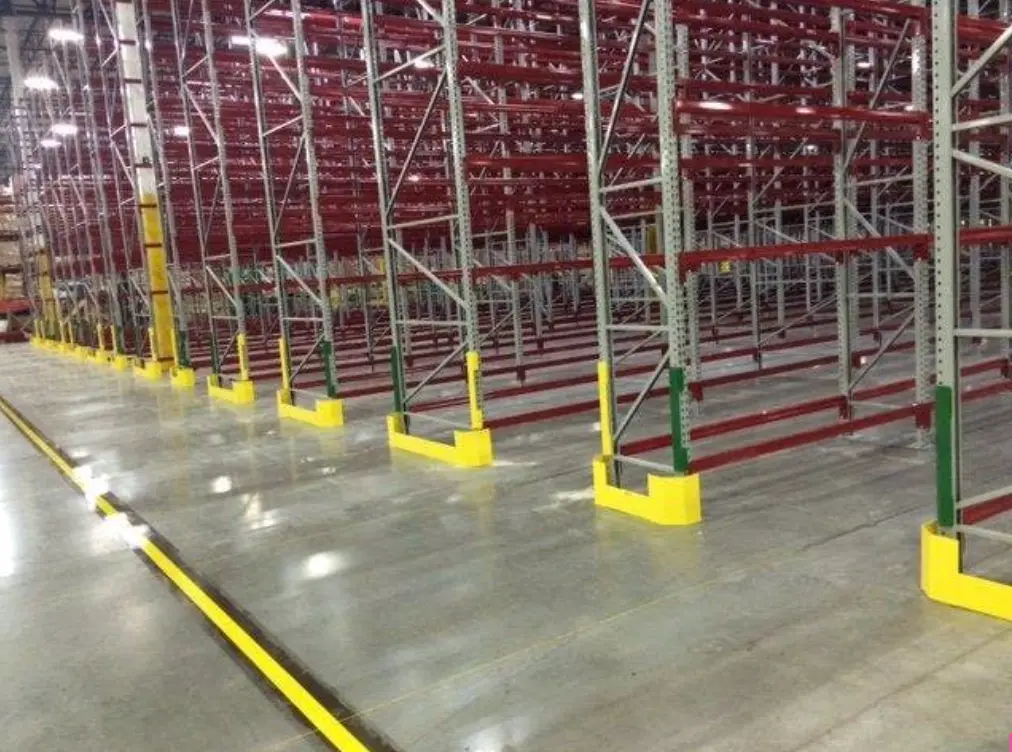

Storage Rack End Guards
Protects sensitive pallet rack row ends
• Rack Guards available in single and double row applications
• Heavy duty 1/4” Plate steel
• 3/8” x 4” removable screw anchors included for easy removal
• Bright OSHA yellow finish
Additional Warehouse Perimeter and Equipment Protection
KABTech’s warehouse barriers and forklift safety rails maintain protection for your employees, facilities, machinery and products year after year with lasting integrity. High traffic areas like shipping & receiving offices and facility passageways need to be protected from forklift mishaps.
We are your single source for all of your office space and warehouse floor space modifications and safety requirements. We offer a variety of modular construction products to upgrade your facility for maximum use of square footage.
KABTech also offers a variety of safety rail systems to protect your warehouse personnel who work in close proximity to machinery, conveyors, lifts, and elevated mezzanine platforms, and outside, raised industrial platforms. We provide a variety of mezzanine safety railings and safety barriers for stairways and landings, as well as in plant offices, to ensure proper employee protection at all times.
We also have a large variety if wire mesh partitions and industrial screen enclosures to effectively protect products and machinery against theft and loss due to damage. Security cages are an economical way to secure and protect goods against unauthorized personnel access.
Modular in-plant office systems will provide your employees with a more productive and less distracting working environment. Affordable in-plant office systems put your management team closer to the production system work area while maintaining a safe and environmentally controlled work facility.
KABTech’s elevated mezzanines provide needed work space over existing work areas and machinery and can be designed for open floor production space, storage and goods handling and can even provide additional mezzanine In-Plant office space. KABTech is ready to help you with all of your warehouse modifications and forklift safety rail projects.
